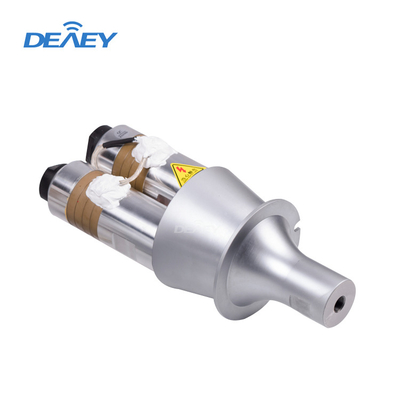

Plastic Welder Parts Two Welders 15khz 4200w Pressure Dual 15k Metal Vibration Welding High Power Ultrasonic Transducers

1 Piece
MOQ
$286.00(1 - 3 Pieces) $254.00(4 - 11 Pieces) $238.00(>=12 Pieces)
цена
Plastic Welder Parts Two Welders 15khz 4200w Pressure Dual 15k Metal Vibration Welding High Power Ultrasonic Transducers
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Voltage: 220v
Frequency: 15KHz
Welding Area: 270x25mm
Dimensions: 40x18.5x17.5cm
Usage: welding transducer
Warranty: 6 Months
After-sales Service Provided: Online support, Video technical support
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Weight (KG): 12 KG
Power (kW): 4200w
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Color: Silver
Product name: 15khz 4200w Pressure Double 15k Plastic Metal Welder Parts
Application: Plastic Welders
Function: Welding
Welding Speed: 0.1s
For Suitable Materials: NON-WOVEN/PVC/PE/PP/ABS
Daily protection: The normal temperature air cooling
MOQ: 1PCS
Other name: Ultrasonic oscillator
Packing: Foam boxes, cartons, wooden cases
After Warranty Service: Video technical support, Online support
Local Service Location: None
Showroom Location: None
Основная информация
Оплата и доставка Условия
Packaging Details: 1pc1package,4pcs per cotton
Характер продукции
Product Description
Features:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrationsUltrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.
Applications:
Paper Cup Making Machine, Nonwoven Machinery, such as Nonwoven Bag Making Machine, Nonwoven Surgical Cap Making Machine, Nonwoven Bouffant Cap Making Machine, Nonwoven Shoe Cover Making Machine, Nonwoven Ultrasonic Plastic Welding Machine, Ultrasonic Lace machine, Three Layers Bag Making Machines, Plastic Bag Making Machine, Stationery, Machinery,Automation Equipment, etc.
Specification
power
4200W
Capacitance
19Nf
Piezoelectric ceramic
Pzt8-60x30x10mm
Color of Piezo
Yellow
Quantity of Piezo
8pcs
Frequency Range
15KHz
Application
Welding
Ambient temperature
5~50degrees
Weight
12kg
Wave form
Long Wave/Intermittent Wave
Origin
China Zhejiang
Joint Screw
M16*1
Certificate
CE
